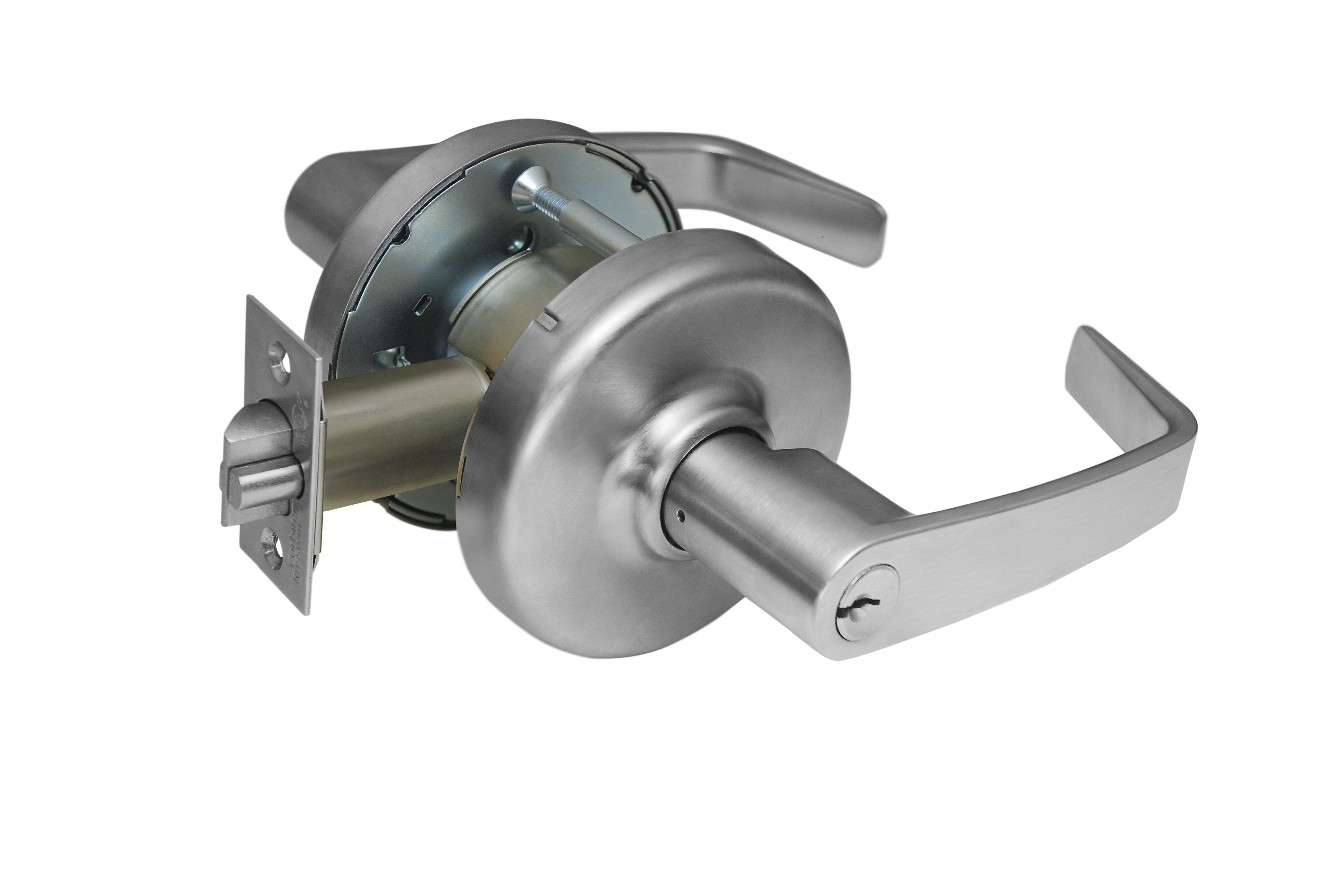

Corbin CL3357NZD626 Zinc Newport Lever and D Rose Single Cylinder Storeroom Grade 1 Extra Heavy Duty Cylindrical Lever Lock L4 Keyway Satin Chrome Finish
Attributes
Ship via: Can Ship UPS
Alternate Codes: 103702, 461269, CL3357NZD626, D80PDRHO626
Ansi Function: F86 - Storeroom
Ansi Function Description: Storeroom
Application: CM
Backset: 2-3/4" Backset
Bolt Protection: 1/2 In.
Bore Hole Diameter: 2-1/8"
Clazz: CN
Color: Satin Chrome
Country of Origin: Usa
Crossbore Size: 2-1/8" Bore with 5/16" Thru Bolt Holes
Cylinder Included: Yes
Cylinder Type: 6-Pin Cylinder, Key-In-Knob/Lever Cylinder
Cylinders Present: Single Cylinder
Design: Zinc Newport Lever and D Rose
Door Bore Size: 2-1/8"
Door Thickness: 1-3/4 In. - 2 In.
Door Thickness Max: 2"
Door Thickness Min: 1-3/4"
Finish: Satin Chrome
Finish Code: 626
Finish Color: Satin Chrome
Finish Description: Satin Chrome
Fire Rated: 3 Hours {A}
Function: 57-Storeroom or Closet
Function Family: Storeroom
Grade: Grade 1
Hand: Not Handed
Handing: Non-Handed
Item Class Description: Zinc Newport Lever and D Rose Single Cylinder Storeroom Grade 1 Extra Heavy Duty Cylindrical Lever Lock L4 Keyway
Item Type Keyword: Lockset
Keying: 0 Bitted
Keys: Blank
Keyway: L4
Knob/ Lever Design: NZD
Knob/ Lever Style: Lever
Latch Backset Dim: 2-3/4"
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 2-1/4" x 1-1/8"
Latch Bolt Throw: 1/2"
Latch Bolt Type: Deadlatch
Latch Bore Diameter: 1"
Latch Number: 586F17
Latch Type: Dead Latch (Guarded)
Lever Knob: Lever
Lever Knob Design: NZ - Newport
Lever Knob Design Family: Straight Return Lever
Lever Knob Design Name: Newport
Lever Style: Angled Return Lever
Limited Warranty: Limited 7 Year Warranty
Lock Category: Cylindrical Lock
Lock Face Size: 2-1/4" x 1-1/8"
Manufacturer Function: Storeroom/Closet
Manufacturer Function Description: Operated by deadlocking latchbolt by key in outside lever or by rotating inside lever, inside lever always free.
Material: Die Cast Zinc
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
Num Of Keys: 2
Num Pins: 6
Number Of Inners: 1
Number Of Pins: 6 Pin
Projection: 2-13/16"
Restricted Keyway: No
Rose Escutcheon: Rose
Rose Escutcheon Design: D - Rose
Rose Escutcheon Dimensions: 3-1/2"
Rose/ Escutcheon Size: 3-1/2"
Rose/ Escutcheon Style: Rose
Screws: Combination
Series: CL3300 Series
Strike: ANSI Curved Lip Strike
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8 In.
Strike Number: 217L13
Strike Size: 4-7/8" x 1-1/4"
Strike Type: ASA
Strike Width: 1-1/4 In.
Structure Cylinder: *
Structure Function: 57
Structure Latch Number: 586F17
Structure Outside Finish: 626
Structure Outside Rose: D
Structure Outside Trim: NZ
Structure Series: CL33
Structure Strike Number: SA114
Subtype: Cylindrical
Supplier: Corbin Russwin
Type: Mechanical Commercial Locksets
