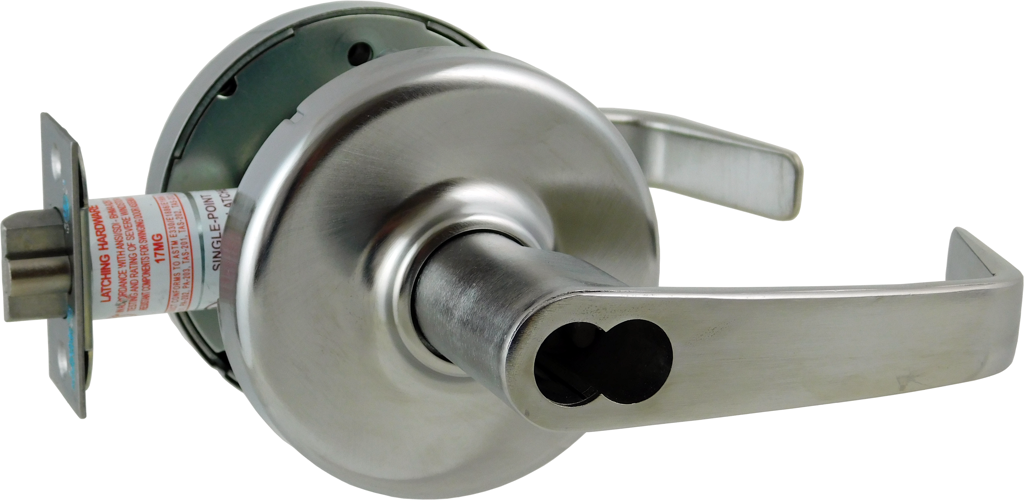

Corbin CL3352NZD626CL6 Zinc Newport Lever and D Rose Double Cylinder Classroom Intruder Grade 1 Extra Heavy Duty Cylindrical Lever Lock IC 6 Pin Less Core Satin Chrome Finish
Attributes
Ship via: Can Ship UPS
Alternate Codes: CL3352NZD626CL6, CL3352NZD626IC, CORCL3352NZD626IC
Ansi Function: F110 - Classroom Intruder
Ansi Function Description: Classroom
Backset: 2-3/4" Backset
Bolt Protection: 1/2 In.
Bore Hole Diameter: 2-1/8"
Country of Origin: Usa
Cylinder Included: Yes
Cylinder Type: IC Core Cylinder
Cylinders Present: Double Cylinder
Design: Zinc Newport Lever and D Rose
Door Bore Size: 2-1/8"
Door Thickness: 1-3/4 In. - 2 In.
Door Thickness Max: 2"
Door Thickness Min: 1-3/4"
Finish: Satin Chrome
Finish Code: 626
Finish Color: Satin Chrome
Finish Description: Satin Chrome
Fire Rated: 3 Hours {A}
Function: 52-Classroom Intruder
Function Family: Classroom Security
Grade: Grade 1
Hand: Not Handed
Handing: Non-Handed
Keyway: None
Knob/ Lever Design: NZD
Knob/ Lever Style: Lever
Latch Backset Dim: 2-3/4"
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 2-1/4" x 1-1/8"
Latch Bolt Throw: 1/2"
Latch Bolt Type: Deadlatch
Latch Bore Diameter: 1"
Latch Number: 586F17
Latch Type: Dead Latch (Guarded)
Lever Knob: Lever
Lever Knob Design: NZ - Newport
Lever Knob Design Family: Straight Return Lever
Lever Knob Design Name: Newport
Lever Style: Angled Return Lever
Limited Warranty: 7 Years
Lock Category: Cylindrical Lock
Lock Face Size: 2-1/4" x 1-1/8"
Manufacturer Function: Classroom Intruder
Manufacturer Function Description: Operated by deadlocking latchbolt by inside lever or outside lever except when key inside or outside locks outside lever, outside lever is locked and unlocked by turning the key in the inside or outside lever, inside lever always free.
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
Num Pins: 6
Projection: 2-13/16"
Restricted Keyway: No
Rose Escutcheon: Rose
Rose Escutcheon Design: D - Rose
Rose Escutcheon Dimensions: 3-1/2"
Rose/ Escutcheon Size: 3-1/2"
Rose/ Escutcheon Style: Rose
Screws: Combination
Series: CL3300 Series
Strike: ANSI Curved Lip Strike
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8 In.
Strike Number: 217L13
Strike Size: 4-7/8" x 1-1/4"
Strike Type: ASA
Strike Width: 1-1/4 In.
Structure Cylinder: CL6
Structure Function: 52
Structure Latch Number: 586F17
Structure Outside Finish: 626
Structure Outside Rose: D
Structure Outside Trim: NZ
Structure Series: CL33
Structure Strike Number: SA114
Subtype: Cylindrical
Supplier: Corbin Russwin
Type: Mechanical Commercial Locksets
