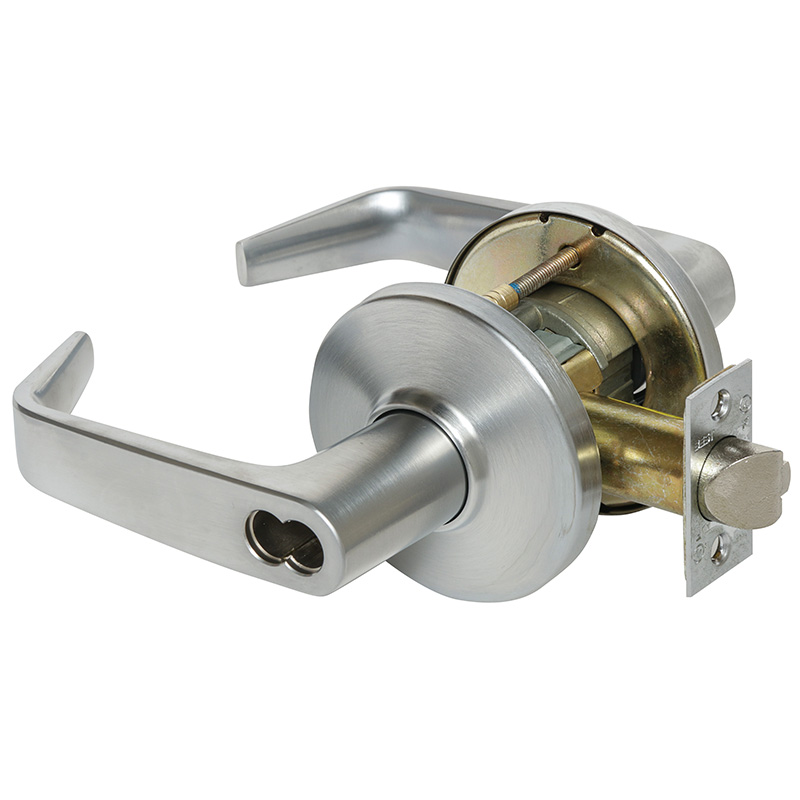

Stanley Best 9K37B15DS3626 9K Series 2-3/4" Backset 7 Pin Office 15 Lever and D Rose with ANSI Strike Less Core Satin Chrome Finish
Attributes
Ship via: Can Ship UPS
Alternate Codes: 9K37B15D-S3-626, 9K37B15DS3626
Ansi Function: F82 - Entry
Ansi Function Description: Entry
Application: CM
Baa Qualified: Yes
Backset: 2-3/4" Backset
Bolt Protection: 9/16"
Bore Hole Diameter: 2-1/8"
Clazz: SB
Color: Satin Chrome
Country of Origin: China
Crossbore Size: 2-1/8" Bore and Two 5/8" Through Bolt Holes
Cylinder Type: SFIC Prep Less Core
Cylinders Present: Single Cylinder
Design: 15D
Door Thickness: 1-3/4" - 2-1/4"
Finish: Satin Chrome
Finish Description: Satin Chrome
Fire Rated: 3 Hours {A}
Function: B-Office
Function Family: Office
Grade: Grade 1
Hand: Not Handed
Handing: Reversible
Item Class Description: 9K Series 2-3/4" Backset 7 Pin Office 15 Lever and D Rose with ANSI Strike Less Core
Item Type Keyword: Office
Latch Backset Dim: 2-3/4"
Latch Bore Diameter: 1"
Latch Number: 8KL3DL
Latch Type: Dead Latch (Guarded)
Lever Knob: Lever
Lever Knob Design: 15 - Lever
Lever Knob Design Family: Straight Return Lever
Lever Knob Design Name: 15
Limited Warranty: Limited 7 Year Mechanical and Finish Warranty
Lock Face Size: 2-1/4" x 1-1/8"
Manufacturer Function: Office
Manufacturer Function Description: Operated by rotating the inside knob, rotating the outisde knob only when inside push button is out, turning the key in the outside knob.
Material: Zinc Alloy with Brass Trim
Maximum Door Thickness: 2-1/4"
Minimum Door Thickness: 1-3/4"
Num Pins: 7-Jun
Number Of Inners: 1
Number Of Pins: 7 Pin Housing
Projection: 2-3/4"
Rose Escutcheon: Rose
Rose Escutcheon Design: D - Rose
Rose Escutcheon Dimensions: 3-1/2"
Screws: Combination
Series: 9K Series
Strike: S3 ANSI Strike
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8"
Strike Number: 8KS3
Strike Type: ASA
Strike Width: 1-1/4"
Structure Cylinder: 7
Structure Function: B
Structure Latch Number: 9K3
Structure Outside Finish: 626
Structure Outside Rose: D
Structure Outside Trim: 15
Structure Series: 9K
Structure Strike Number: S3
Subtype: Cylindrical
Type: Mechanical Commercial Locksets
Upc: 887838149275
