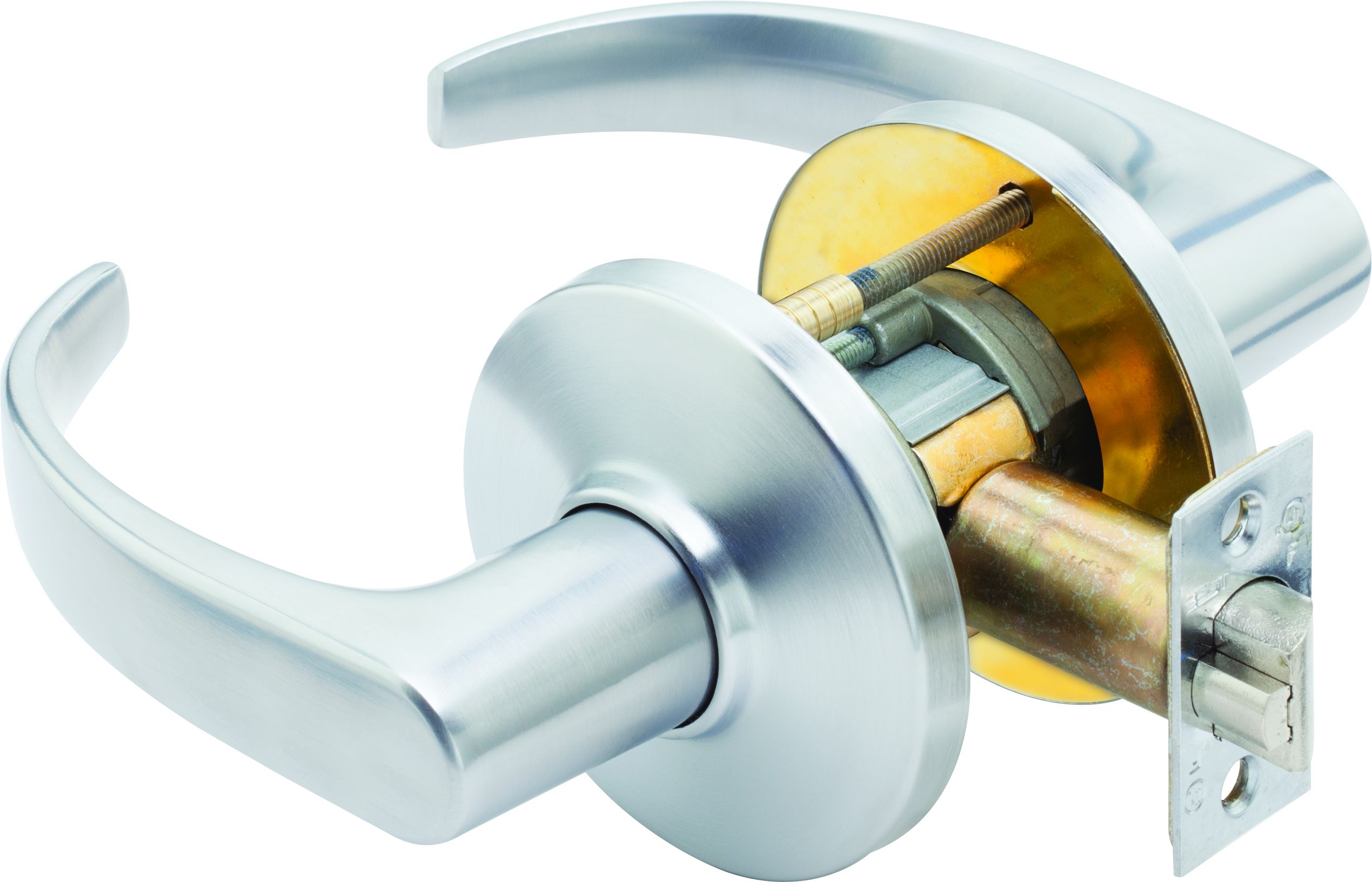

Stanley Best 9K30N14DS3626 9K Series 2-3/4" Backset Passage 14 Lever and D Rose with ANSI Strike Satin Chrome Finish
Attributes
Ship via: Can Ship UPS
Alternate Codes: 9K30N14D-S3-626, 9K30N14DS3626
Ansi Function: F75 - Passage
Ansi Function Description: Passage
Application: CM
Baa Qualified: Yes
Backset: 2-3/4" Backset
Bolt Protection: 9/16"
Bore Hole Diameter: 2-1/8"
Clazz: SB
Color: Satin Chrome
Country of Origin: China
Crossbore Size: 2-1/8" Bore and Two 5/8" Through Bolt Holes
Cylinder Included: No
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Design: 14D
Door Bore Size: 2-1/8"
Door Thickness: 1-3/4" - 2-1/4"
Door Thickness Max: 2-1/4"
Door Thickness Min: 1-3/4"
Finish: Satin Chrome
Finish Color: Satin Chrome
Finish Description: Satin Chrome
Fire Rated: 3 Hours {A}
Function: N-Passage
Function Family: Passage
Grade: Grade 1
Hand: Not Handed
Handing: Reversible
Item Class Description: 9K Series 2-3/4" Backset Passage 14 Lever and D Rose with ANSI Strike
Item Type Keyword: Passage
Knob/ Lever Design: 14
Knob/ Lever Style: Lever
Latch Backset Dim: 2-3/4"
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 2-1/4" x 1-1/4
Latch Bolt Throw: 9/16"
Latch Bolt Type: Springlatch
Latch Bore Diameter: 1"
Latch Number: 8KL3SL
Latch Type: Spring Latch (Unguarded)
Lever Knob: Lever
Lever Knob Design: 14 - Lever
Lever Knob Design Family: Curved Return Lever
Lever Knob Design Name: 14
Limited Warranty: Limited 7 Year Mechanical and Finish Warranty
Lock Category: Cylindrical Lock
Lock Face Size: 2-1/4" x 1-1/8"
Manufacturer Function: Passage
Manufacturer Function Description: Operated by rotating the inside knob, rotating the outside knob.
Material: Zinc Alloy with Brass Trim
Maximum Door Thickness: 2-1/4"
Minimum Door Thickness: 1-3/4"
Number Of Inners: 1
Projection: 2-3/4"
Rose Escutcheon: Rose
Rose Escutcheon Design: D - Rose
Rose Escutcheon Dimensions: 3-1/2"
Rose/ Escutcheon Size: 3-1/2"
Rose/ Escutcheon Style: Rose
Screws: Combination
Series: 9K Series
Strike: S3 ANSI Strike
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8"
Strike Number: 8KS3
Strike Size: 2-3/4" x 1-1/8"
Strike Type: ASA
Strike Width: 1-1/4"
Structure Function: N
Structure Latch Number: 9K3
Structure Outside Finish: 626
Structure Outside Rose: D
Structure Outside Trim: 14
Structure Series: 9K
Structure Strike Number: S3
Subtype: Cylindrical
Supplier: Best Access
Type: Mechanical Commercial Locksets
Upc: 887838151773
