Best 45HZ7-DV-15KP-626 Best Electric Mortise Lock
Images may not represent actual product and finish

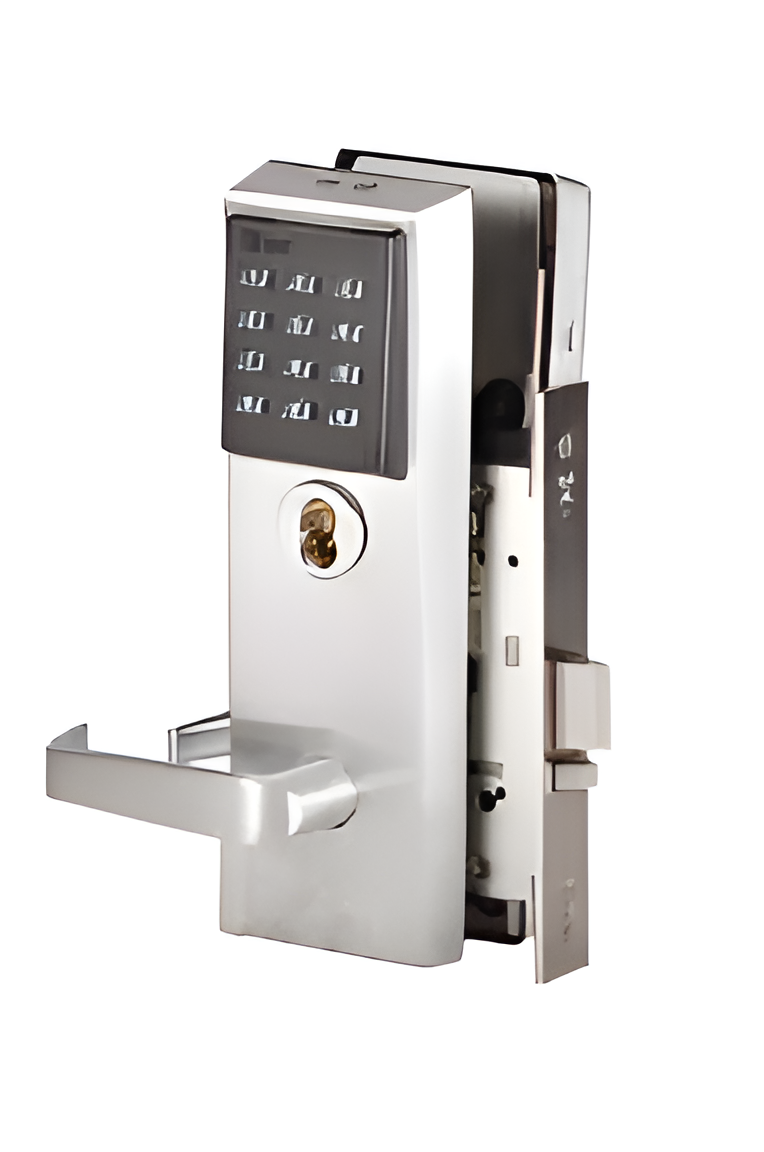

Best 45HZ7-DV-15KP-626 Best Electric Mortise Lock

0
0
5

45HZ Keypad EZ Mortise Lock, 7-Pin Housing; Accepts all BEST Cores, Latch w/Key Function, Contour/Angle Return Lever Style, Keypad, Satin Chrome

$655.93
$1,353.00
$697.07(52%)
19 In Stock.
BES_45HZ7DV15KP626
Best Access Solutions
Best 45HZ7-DV-15KP-626 Best Electric Mortise Lock

Less Cylinder

  • Solid one-piece stainless steel anti-friction latch provides 50 percent more surface contact with strike for superior strength and security. Reversible latch rotates 180 degrees for easy handing change without opening case. Precision-engineered curve provides enhanced cycle life with reduced wear to the strike.
  • Non-handed cylinder retainer and stainless steel auxiliary bolt for ease of changing hand.
  • Armored front completely surrounds latch and deadbolt providing increased lateral strength. Staked assembly design allows the armored front to self-align with the door bevel during installation.
  • Enhanced case integrity achieved through four case cover screws (one at each corner), plus interlocking armored front and cover design at the latch.
  • Roller bearing hub mechanism provides smooth, wear resistant operation.
  • Locking toggle includes clear indication of "locked" and "unlocked" states.
  • 40H case, cover, and armored front manufactured from 0.095" cold rolled steel for strength and durability.
  • Fusible link.
  • Four position hub toggle design determines whether each hub is always locked, always unlocked, or locked by key for easy handing change without opening case.
  • Lever return spring mechanism located in trim for enhanced protection against lever droop, providing a firm, positive return of the lever to the horizontal position.
  • Self-aligning trim mechanism for fast, easy, and accurate installation.
  • Curved lip strike and strike box assembly provides an aesthetic, non-handed solution to complement field reversible case.
  • Solid machined cylinder rings with tension spring provide resistance to wrenching of cylinder. Cylinder security screw prevents removal of cylinder without first removing interchangeable core.

Attributes

Alternate Codes: 45HZ7-DV-15KP-626, 45HZ7DV15KP-626, 45HZ7DV15KP626, BES45HZ7DV15KP-626

Backset: 2-3/4"

Cylinder Included: No

Cylinder Type: IC Core Cylinder, Mortise Cylinder

Cylinder Type: SFIC Prep Less Core

Door Bore Size: 2-1/8"

Door Thickness Min: 1-3/4"

Finish: 626/US26D

Finish Color: Satin Chrome

Finish Description: Satin Chrome

Function: Storeroom

Grade: Grade 1

Handing: Field Reversible

Knob/ Lever Design: 15

Knob/ Lever Style: Lever

Latch Bolt Face Type: Square Corner

Latch Bolt Faceplate Size: 8" x 1-1/4"

Latch Bolt Throw: 3/4"

Latch Bolt Type: Deadlatch

Lever Knob Design: 15 - Lever

Lock Category: Mortise Lock

Rose/ Escutcheon Size: 2-3/4"

Rose/ Escutcheon Style: Rose

Series: 40H Series

Strike Size: 4-7/8" x 1-1/4"

Subtype: Electric Mortise Lock

Supplier: Best Access

Type: LOCK SETS
