Arrow Lock DBX61-613E-CSKA4 Lock Deadlock

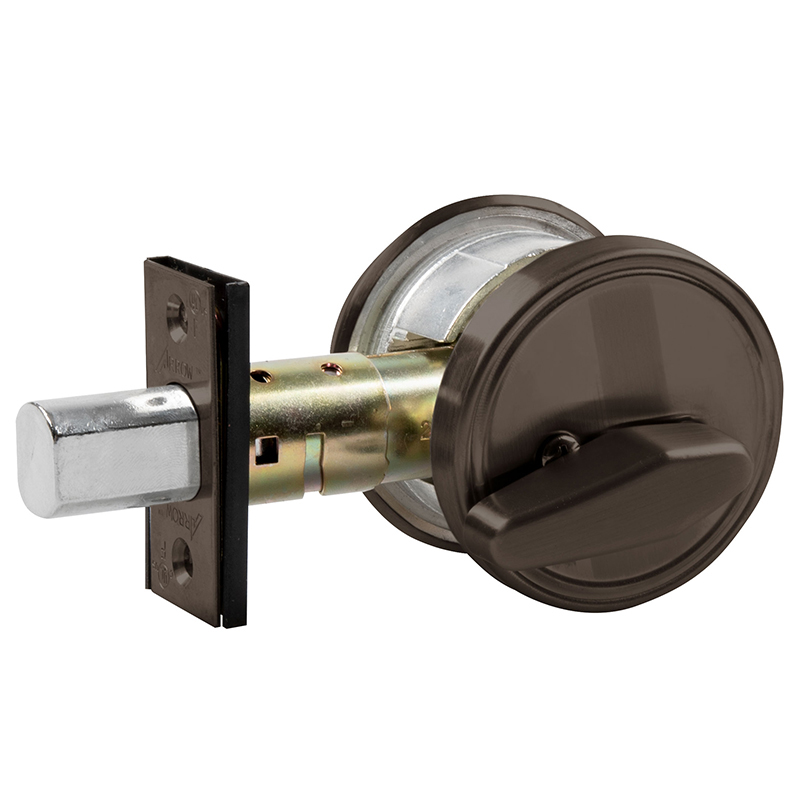

Images may not represent actual product and finish

Arrow Lock DBX61-613E-CSKA4 Lock Deadlock


Deadbolt, Single Cylinder, Schlage C Keyway, KA4, Dark Bronze

286 In Stock.
Arrow Lock
Arrow Lock DBX61-613E-CSKA4 Lock Deadlock

The DB Series is a Grade 2 Commercial Deadbolt that features an adjustable backset in an attractive low profile package. It is ideal for commercial common areas and residential use.

  • Housing: Solid zinc cylinder housing
  • Backset: 2-3/8" (60.32 mm) to 2-3/4" (69.85 mm), adjustable.
  • Deadbolt fronts: 2-1/4" (57.15 mm) x 1" (25.40 mm). Plastic spacer supplied for 1-1/8" (27.5mm) mortise.
  • Doors: 1-3/8" (34.925 mm) to 2" (50 mm) thick standard.
  • Strikes: 1/32" (2.3mm) steel with wood frame reinforcer.
  • Latch Bolt: 1" (25mm) throw brass deadbolt with hardened, free spinning steel pin insert
  • Cylinder, Standard: Solid brass, drilled for 6 pins, pinned to 5 for stock. Supplied with two nickel plated brass keys per keyed lock. Schlage CS keyway standard.
  • Cylinder Options: Accepts 6 or 7 pin interchangeable cores. Supplied less cores. Will accept Best™ or Falcon™ type cores.


Alternate Codes: ARRDB61-10B-CS, DB61-10B-CS, DB6110BCS, DBX61-613E-CSKA4, DBX61613ECSKA4

Backset: 2-3/4", 2-3/8"

Cylinder Included: Yes

Cylinder Type: 6-Pin Cylinder

Door Bore Size: 2-1/8"

Door Thickness Max: 1-3/4"

Door Thickness Min: 1-3/8"

Finish: Oil Rubbed Bronze

Finish Color: Oil Rubbed Bronze

Finish Description: Dark Oxidized Satin Bronze Equivalent

Function: Single Cylinder

Grade: Grade 2

Handing: Non-Handed

Keyway: Schlage C

Knob/ Lever Style: Inside Thumbturn

Latch Bolt Face Type: Square Corner

Latch Bolt Faceplate Size: 2-1/4" x 1", 2-1/4" x 1-1/8"

Latch Bolt Throw: 1"

Latch Bolt Type: Deadbolt

Lock Category: Deadbolt

Restricted Keyway: No

Series: DB Series

Strike Size: 2-3/4" x 1-1/8"

Subtype: Deadlock

Supplier: Arrow
