Altronix ALTV244 Power Supply

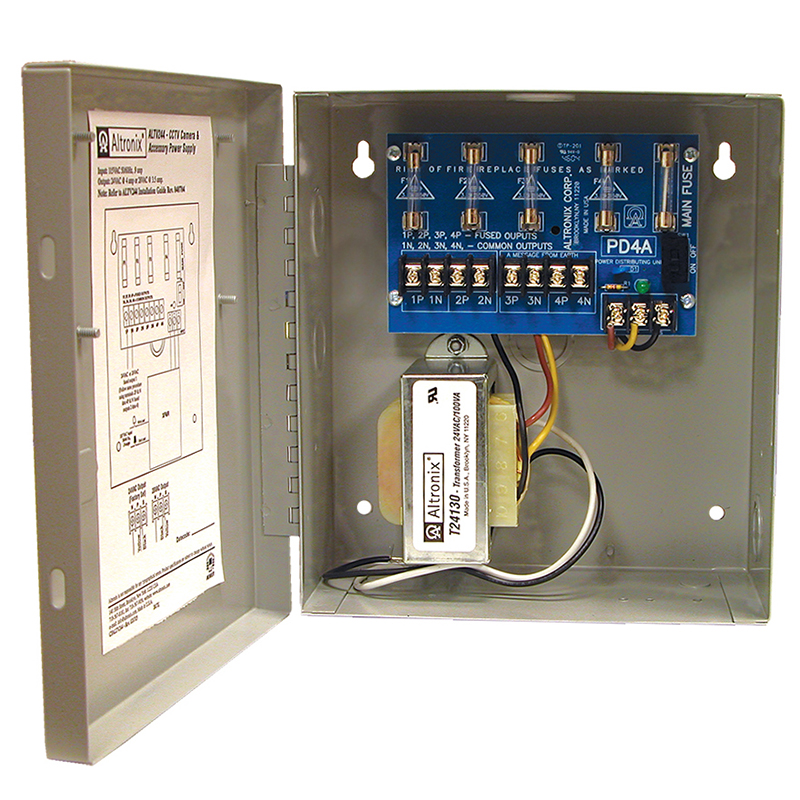

Images may not represent actual product and finish

Altronix ALTV244 Power Supply

0
0
5

CCTV Power Supply, Input 115VAC 50/60Hz at 0.9A, 4 Fuse Protected Outputs, 24VAC at 4A or 28VAC at 3.5A, Grey Enclosure

$69.82
$119.10
$49.28(41%)
14 In Stock.
ALT_ALTV244
Altronix
Altronix ALTV244 Power Supply

24VAC @ 4 amp or 28VAC 3.5A (100VA) supply current. four (4) fuse protected outputs. Surge suppression. Includes transformer & enclosure.

  • Input:
  • 115VAC, 50/60Hz, 0.9 amp.
  • Output:
  • Four (4) fuse protected outputs.
  • 24VAC @ 4 amp (100VA) supply current (1 amp per device, 3.5 amp max.)
  • 28VAC @ 3.5 amp (100VA) supply current (0.875 amp per device, 3.5 amp max.).
  • Outputs are rated @ 3.5 amp.
  • Surge suppression.
  • Electrical:
  • Operating temperature: 0° C to 49° C ambient.
  • BTU/Hr.:
  • 24VAC: 49.13 BTU/Hr.
  • 28VAC: 50.16 BTU/Hr.
  • System AC input VA requirement: 103.5VA.
  • Features:
  • Secondary fuse rated @ 5 amp/250V.
  • AC power LED.
  • Power ON/OFF switch.
  • Spare fuses provided.
  • (all models w/primary and/or secondary fuses).
  • Mechanical:
  • Enclosure Dimensions (H x W x D approx.): 8.5" x 7.5" x 3.5" (215.9mm x 190.5mm x 88.9mm)
  • Product weight (approx.): 6.2 lbs. (2.8 kg.).
  • Shipping weight (approx.): 6.8 lbs. (3.1 kg.).

Attributes

Access Type: CCTV Power Supply

Alternate Codes: 125265, ALTV244, PS2440

Output Amps: 4/3.5 AMPS

Output Volts: 24/28VAC

Purpose: CCTV

Series: Altronix Power Supplies

Subtype: Power Supply

Type: Wire-In Transformer

Voltage/ Amp Rating: 24V AC
