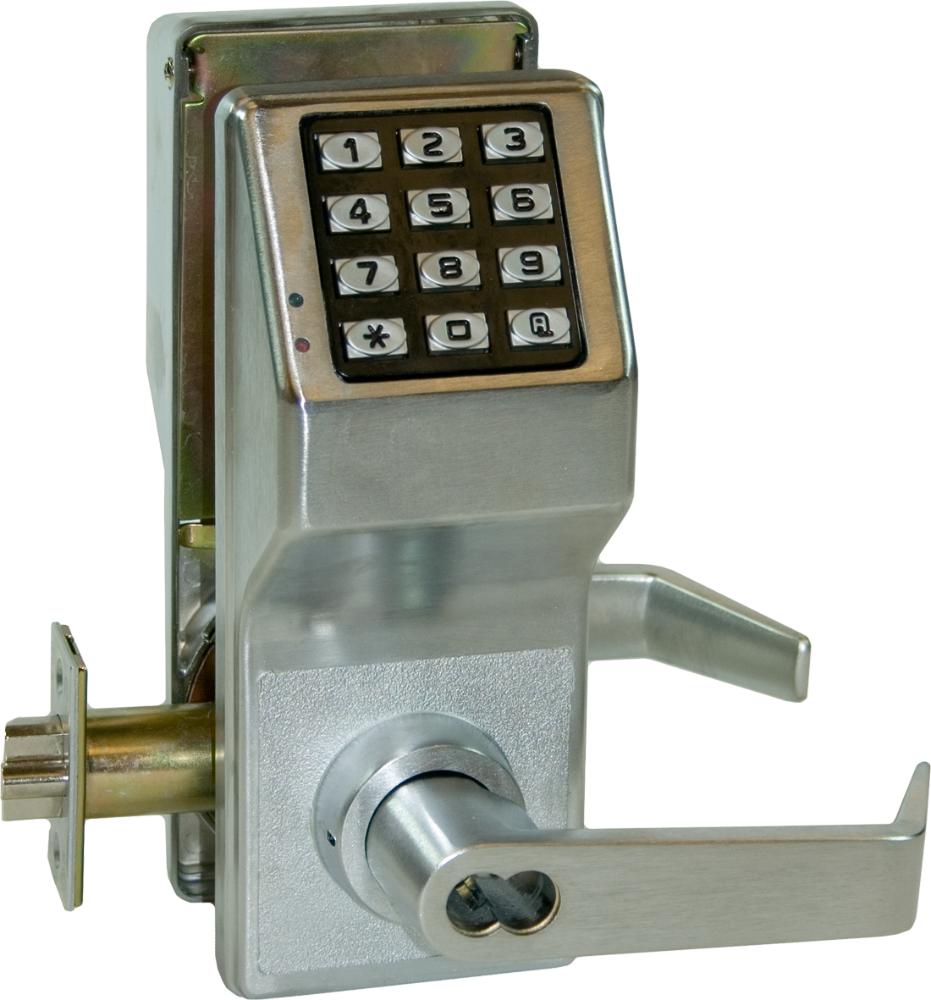

Alarm Lock DL2700IC/26D-R Ala Dl2700 Ic Us26d Digital Lock Sargent
Images may not represent actual product and finish

Alarm Lock DL2700IC/26D-R Ala Dl2700 Ic Us26d Digital Lock Sargent

0
0
5

$544.63
$977.00
$432.37(44%)
13 In Stock.
Free Shipping.
ALL_DL2700IC26DR
Alarm Lock Systems
Alarm Lock DL2700IC/26D-R Ala Dl2700 Ic Us26d Digital Lock Sargent

Ala Dl2700 Ic Us26d Digital Lock Sargent

  • OPERATION: Clutch mechanism permits turning lever without retracting latch and reduces stress on lock bodies and spindle. Outside lever free turning in locked position. Entering access code, key bypass, or remote bypass will allow lever to retract latch. Inside lever always instant egress.
  • DOOR THICKNESS: 1-5/8" to 1-7/8" Other thicknesses may be available special order.
  • BACKSET:
  • 2-3/4" Standard.
  • 2-3/8" backset also available.
  • KEYPAD: All metal, 12 button programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability and allowable entry time from 5 to 20 seconds. 4 Different keypad tones and keypad may be silenced.
  • STANDARD KEY OVERRIDE CYLINDERS: Solid brass 6 pin tumbler cylinder pinned 5, SC1 keyway, furnished in all locks. Additional tailpieces included: HW580 fits Schlage, Corbin/Russwin CL, Sargent 480 Series, ASSA65-611. Model HW620 fits Ilco and Lori cylinders.
  • INTERCHANGEABLE CORE MODELS: Accepts 6 & 7 Pin Cylinders from: Best, Arrow, KSP, Medeco Keymark & Kaba Peaks. Also available IC Core models for Yale, Medeco, Sargent, Corbin/Russwin CL and Schlage. Alarm Lock Tailpiece is supplied; IC Core is not included.
  • LATCHBOLT: UL Listed, fire rated, 3 hours, 1/2" throw, solid brass, deadlocking. Reversible. Adjustable front for flat or beveled doors.
  • STRIKE: 1-1/8" x 2-3/4" T strike & 1-1/4" x 4-7/8" ASA strike included. With screws for wood or metal jambs.
  • LATCH FRONT: 1-1/8" x 2-1/4" wrought brass or stainless steel.
  • HANDING: Non-handed.
  • POWER: 5 AA alkaline batteries are now rated at 120,000 cycles, supplied. Audible low battery alert, visual and audible entry indicators, unique Flex Drive" motor.
  • DOOR PREP: Standard ANSI A115 Series Prep, modified by adding additional through-bolt holes.
  • COMPLIANCES: Grade 1, heavy duty cylindrical lockset, UL listed and FCC certified. ADA compliant leversets.

Attributes

Access Type: Electronic

Alternate Codes: ALADL2700IC-RUS26D, ALADL2700IC26D-R, ALADL2700IC26DR, ALADL2700ICR26D, ALADL2700X26D-R, DL2700IC/26D-R, DL2700IC26DR

Cylinder Type: 6-Pin Cylinder, IC Core, Sargent Prep

Door Thickness: 1-5/8" - 1-7/8"

Finish Color: Satin Chrome

Function: Key Override, Keyless Entry

Grade: Grade 1

Handing: Non-Handed

Knob/ Lever Design: Bent

Knob/ Lever Style: Lever

Lock Category: Cylindrical Lock

Proximity Format: Keypad

Series: DL2700 Series

Type: ACCESS CONTROL

Voltage: 5 AA
