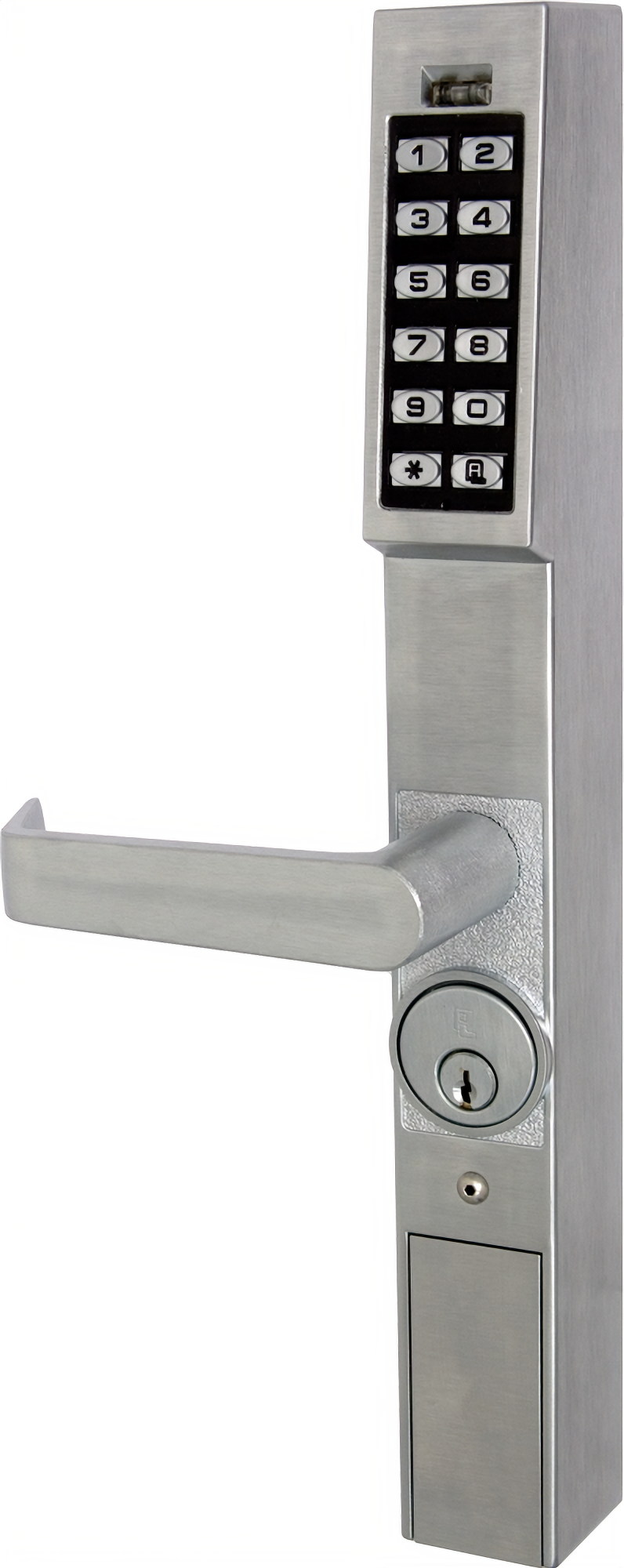

Alarm Lock Systems DL1200/26D1

0 Review(s) Write a Review

Your Price: $483.77

Retail Price:$806.28

You Save:$322.51(40%)

Pushbutton Aluminum Door Trim, 100 Users, Straight Lever, Satin Chrome

Part Number: ALL_DL120026D1

Availability: In Stock.

Quantity

Description
Feature 6

Alarm Lock DL1200/26D1 Access Control

Alarm Lock DL120026D1 Trilogy Narrow Stile Digital Lever Lock Satin Chrome Finish

Aluminum door retrofit outside trim for Adams Rite 1850, 1950, 4710, 4070, 4730, 4900 Series and MS1850S and MS1950S Series latch locks
Add keyless convenience to mechanical latch locks from Trilogy’s all-metal, vandal-resistant 12-button keypad and/or automatic timed-scheduled locking/unlocking and audit trail with 1300 Series
DL1200 supports 100 3-6 digit PIN user codes, fingertip programmable
DL1300 (and Prox PDL1300, right) support 2000 users, PC programming/reporting and features 40,000 event audit trail by user and 500 event schedule/real time clock (e.g. lock/unlock by time)
Weatherproof -31 deg. to +151 deg.F (-35 deg. to +66 deg.C)
Long-life, battery- operated for 100,000 and 80,000 cycles respectively, 2 lithium 3V batteries, supplied; low battery alert
Compact styling, 14-3/8"H x 1-5/8"D x 1-3/4"W
Key override mortise cylinder, 1-1/4" supplied. (Supports 1-1/8", 1-1/4" and 1-3/8"). Also interchangeable cores supported (Corbin/Russwin, Yale, Schlage, Medeco.)
Backsets 31/32", 1-1/8" and 1-1/2" ; Stile thickness 1-3/4"
Non-handed; fully field-reversible
Four finishes US26D satin chrome, US10B duronodic, MS metallic silver and MB metallic bronze
100 3-6 Digit PIN User Codes
Finger Tip Programmable
Battery Operated for 100,000 Cycles
1-1/4" Key Override
Fully Reversible

Attributes

Ship via: Can Ship UPS

Access Type: Electronic

Alternate Codes: 139122, ALADL120026D1, DL1200/26D1, DL120026D1

Backset: 1-1/2", 1-1/8", 1"

Cylinder Type: 6-Pin Cylinder, Mortise

Design: Narrow Stile

Door Thickness: 1-3/4"

Finish: Satin Chrome

Finish Color: Satin Chrome

Finish Description: Satin Chrome

Function: Entry

Grade: Grade 1

Handing: Non-Handed

Keypad Type: Electronic

Keyway: Schlage C

Knob/ Lever Style: Lever

Limited Warranty: 2 Years

Lock Category: Narrow Stile Locks

Lock Platform: Narrow Stile Trim Latch

Power: Lithium 3V

Programmer: Optional

Proximity Format: Keypad

Reader Technology: Keypad Only

Series: DL Series

Series Name: Trilogy

Software: Optional

Subtype: Electronic Locksets

Type: Electronics

Users: 100

Voltage: 2 3V
