Aiphone JP-4HD Intercom
Images may not represent actual product and finish

Aiphone JP-4HD Intercom

0
0
5

7" Touchscreen Handset/Hands-Free Sub Master For JP Series

$891.41
$1,516.00
$624.59(41%)
49 In Stock.
AIP_JP4HD
Aiphone

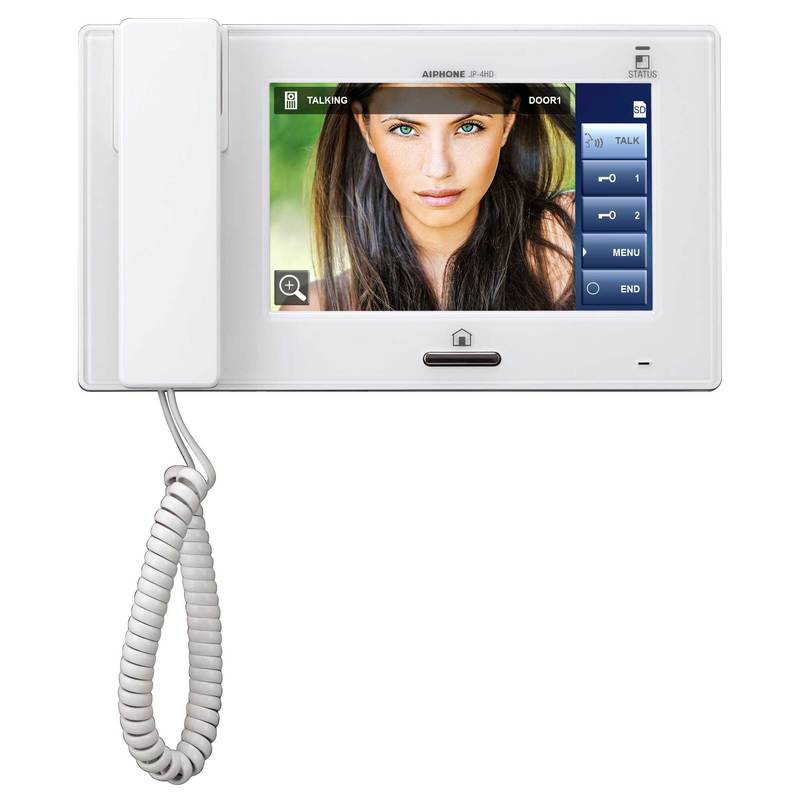

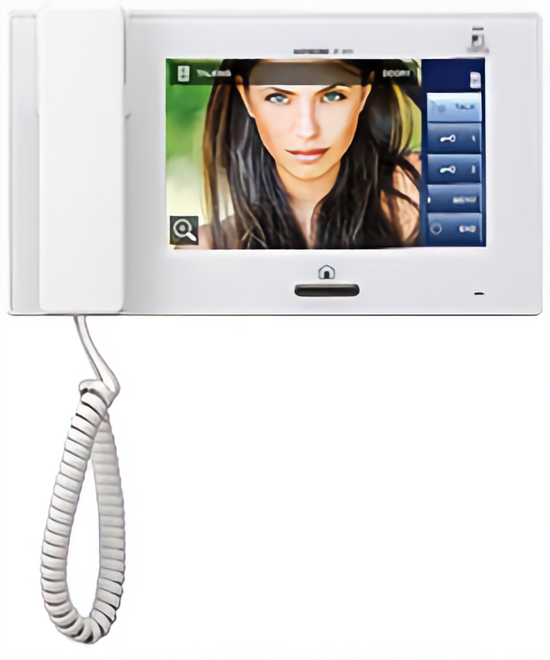

Aiphone JP-4HD Intercom

7in touchscreen handset/hands-free sub master for JP Series

  • Power Source 24V DC – use PS-2420UL
  • Communication Hands-free (VOX) or handset (full-duplex)
  • Video Display 7" color LCD touchscreen
  • Picture Memory Internal / Built-In: record max. 20 calls (6 images per call) with up to 5 calls protected from overwriting SD / SDHC card: record max. 1,000 calls (40 images per call) with up to 100 calls protected from overwriting
  • Camera Type: 1/4" color CMOS
  • View Area: 100° vert. x 170° horiz.
  • Door Release Two N/O dry contacts, 24V AC/DC, 500mA (1 door use RY-24L, 2 or 3 doors use RY-3DL, 4 doors use RY-3DL + RY-24L)
  • Wire Type Door Station to Master Station: 2-cond., mid cap, solid, non-shielded – use Aiphone #871802 or the green pair twisted + blue pair twisted from CAT-5e/6
  • Power Supply to Master Station: 2-cond., mid cap, solid, non-shielded – use Aiphone #871802 or 2-pairs from CAT-5e/6, twisted
  • Master Station to Adaptor: CAT-5e or CAT-6
  • Adaptor to Sub Master Station: CAT-5e or CAT-6
  • Distance: Door Station to Master Station: 330'(18AWG) 165'(CAT-5e/6)
  • Total Cumulative between Master/Sub Master Stations: 980' (CAT-5e/6)
  • Master Station to Distribution Adaptor: 650'
  • Distribution Adaptor to each Sub Master Station: 165'
  • Power Supply to Master Station: 16'(22AWG) 33'(18AWG)
  • Power Supply to Distribution Adaptor: 16'(22AWG) 33'(18AWG)

Attributes

Access Type: Video Door Station

Alternate Codes: JP-4HD, JP4HD

Communication: Voice and Video

Door Panel Mount: Surface

Function: Video Entry

Operating Volt: 24 VDC

Series: JP Video Intercom Touchscreen System

Station Mount: Surface Wall

Station Size: 5-11/16"X10-1/16"X1-3/16"

Station Type: Hand Set

Subtype: Intercom

Type: ACCESS CONTROL

Wire Required: CAT5/5E/6
