Images may not represent actual product and finish

Thumbnail

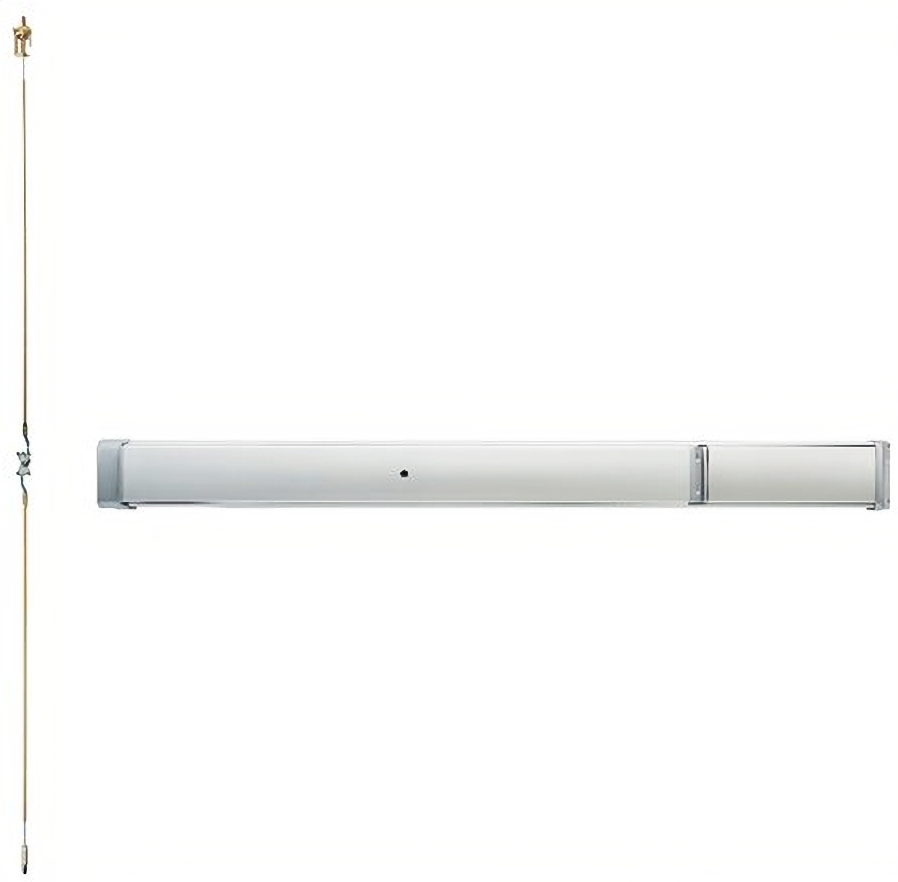

Adams Rite EX76-R628

0 Review(s) Write a Review

Your Price: $458.46

Retail Price:$849.00

You Save:$390.54(46%)

EX Series Concealed Vertical Rod Exit Device, Regular, 36 In., Satin Aluminum Clear Anodized

Part Number: ADR_EX76R628

Availability: In Stock.

Quantity

Description

Adams Rite EX76-R628 Exit Device

EX Series Concealed Vertical Rod Exit Device, Regular, 36 In., Satin Aluminum Clear Anodized

Materials: Active pushbar and back bar made of extruded aluminum. Matching metal angled end caps.
Handing: Device is non-handed.
Door Thickness: Suits 1-3/4" standard, up to 2-3/4" door thickness. Thick door kit required when used with cylinder in doors over 1-3/4".
Door Height:
Standard unit adjustable to maximum 96" door height with device mounted at 34" centerline above finished floor, up to 62" above the selected bar height.
Tall door kit required when used in doors taller than 96". Maximum door height 120".
Bolt projection easily adjustable. Projection will change 1/8" for every 3 full rotations of the bolt, to a maximum of 5/8" throw.
Stile Width: Minimum 2-1/2" stile. Fits narrow, medium and wide stile aluminum doors.
Stile Wall: Suitable for doors with up to 3/16" stile wall thickness.
Bar Height: Standard model adjusts from 34" to 44" above finished floor.
Projection: 2-1/2" when fully projected, 1-3/4" when dogged.
Dogging: Standard dogging with 3/16" hex key.
Fasteners: Device mounted using standard type 'F' self-tapping screws and machine screws. Hardware is not visible from back when installed. Adhesive templates for mounting included.
End Caps: Mounting end cap with 1/4" overlap for cut coverage.
Universal Hardware Kit: Hardeware kit is suitable for aluminum, hollow metal, and wood door applications.
Strike:
Header strike made of hardened steel
When properly adjusted to 1/8" door gap the supplied curved strike functions to consistently engage the bolt, which enhances the reliability of the door latching function.
Trim: Compatible with Adams Rite 3080 Series Entry Trim and 3090 Series Entry Trim.
Noise Reduction:
Impact bumpers to reduce noise from the initial device activation
Return control to dampen the sound and control the device returning to its resting state
Horizontal and vertical guides decrease the scraping sound of the active push bar on the static back bar
Standard Package: Individually boxed.
Shipping weight: 11 lbs

Attributes

Ship via: Can Ship UPS

Alternate Codes: EX76-R628, EX76R628

Device Length: 36 In.

Device Type: Concealed Vertical Rod

Door Material: Hollow Metal

Door Thickness: 1-3/4 In.

Finish: 628/US28

Finish Description: Satin Aluminum Clear Anodized

Fire Rated: No

Hand: Non-Handed

Includes Trim: No

Physical Appearance: Narrow Stile Pushpad

Reversible: Yes

Series: EX Series Exit Devices

Subtype: Exit Device

Type: GLASS ALUMINUM HARDWARE
