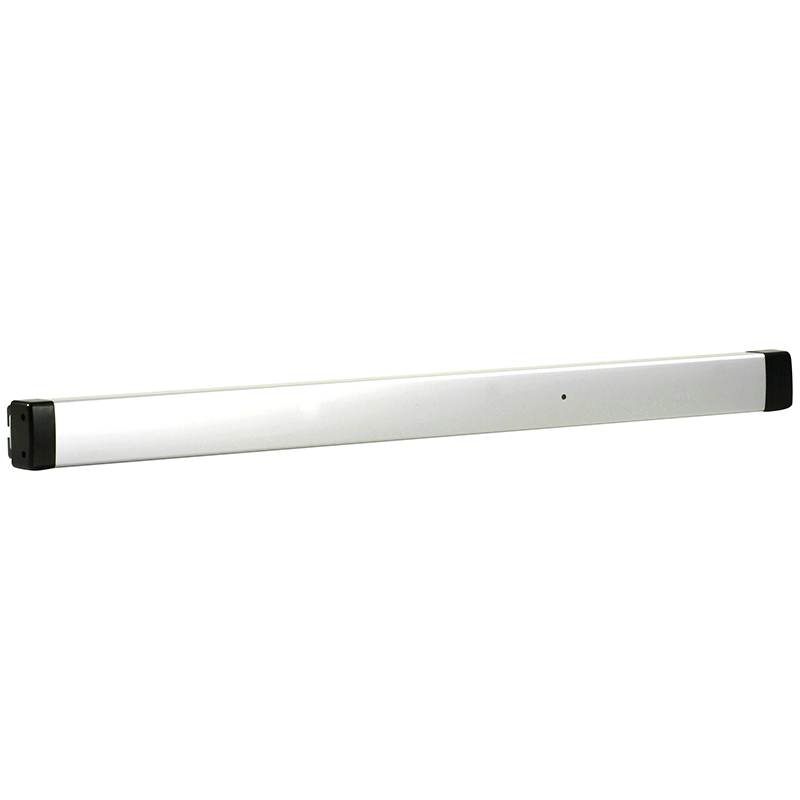

Adams Rite 8801-42 Exit Device
Images may not represent actual product and finish

Adams Rite 8801-42 Exit Device

0
0
5

Rim Exit Device, Narrow Stile Aluminum Doors, 42", Aluminum

$264.00
$500.00
$236.00(47%)
29 In Stock.
ADR_880142
Adams Rite
Adams Rite 8801-42 Exit Device

Patented Starwheel Bolt interlocks door to frame. Pushbar is anodized or clad, not plated, in a variety of finishes. Unobtrusive design for clean sight lines. Easy to install. Strong, durable construction for a high level of security.

  • Silent Electrification Motorized Latch Retraction: The SE Motorized Latch Retraction option provides near-silent operation for quiet environments such as hospitals, offices, hotels, and libraries where solenoid-driven devices would be disruptive.
  • Electric Latch Retraction: The EL option is offered only for our Rim Exit devices and uses a solenoid mounted in the pushbar for instantaneous unlocking and locking of the exit device from a remote location or access control device. The EL option is available for rim exit devices only.
  • Alarmed Exit Device: This battery-operated option emits a loud (95 decibel) alarm to notify management of unauthorized exit. Available on minimum opening width 36". Cannot be ordered with other exit device options.
  • Request to Exit (REX) - Monitor / Signal Switch: Mounted in the exit device pushbar on the hinge end, the switch can be used to activate signal light, horn, monitor, or other devices.
  • Cylinder Dogging: For management control of dogging exit devices for life-safety exit devices only.
  • Electric Dogging: A holding magnet keeps the pushbar depressed (set manually) and the latch retracted for lower profile exit devices, resulting in less damage and quieter operation.
  • Matching End Caps: Matching end caps are available for applications where it is preferable that the end caps match the finish of the exit device. Available for US finishes only.
  • Starwheel Bolt: When door closes, the interlocking noseguard and starwheel bolt close around the strike. The deadlocking slide springs over, locking the starwheel bolt to the strike. When pushbar is depressed, the deadlocking slide moves back, allowing the door to unlock from the strike. This unique interlock provides solid security and prevents jamb spreading.
  • When pushbar is depressed, the deadlocking slide moves back, allowing the door to unlock from the strike. This unique interlock provides solid security and prevents jamb spreading.
  • Strike: Made of hardened steel. Standard strike and narrow versions for centering doors in 4" jamb. (Both strikes are included).
  • Removable Mullion - 3890: Allows the use of rim exit devices on paired doors without narrowing the doors. Provides higher security and better traffic flow than paired doors with vertical rod exit devices. Available in anodized 313 and 628. Specify door height when ordering.

Attributes

Alternate Codes: 128660, 8801-42, 880142

Bar Style: Push Bar

Device Length: 42 In.

Device Type: Rim

Dogging: Hex Key

Door Type: Aluminum

Door Width: 42"

Door Thickness: 1-3/4 In. - 2-1/4 In.

Exit Device Type: Narrow Stile, Rim Exit

Finish: Satin Chrome

Finish Color: Satin Chrome

Finish Description: Satin Aluminum Clear Anodized

Fire Rated: No

Function: Exit Only

Hand: Non-Handed

Handing: Non-Handed

Includes Trim: No

Mechanical Function: Universal

Minimum Style Size: 2 In.

Options: Self Tapping Screws

Physical Appearance: Narrow Stile Pushpad

Series: 8800 Series

Subtype: Exit Device

Supplier: Adams Rite

Type: GLASS ALUMINUM HARDWARE
