47% off

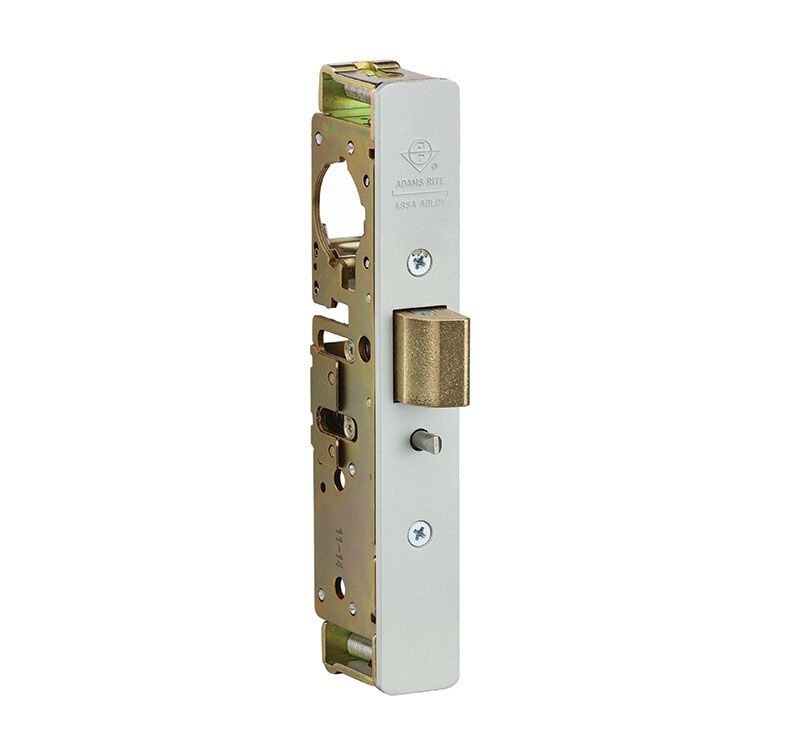

Adams Rite 4900-46-201-313 Mortise Lock
Images may not represent actual product and finish

Adams Rite 4900-46-201-313 Mortise Lock

0
0
5

Heavy Duty Deadlatch, Flat Faceplate, 1-1/2 In. Backset, 2-5/8 In. Flat Mortised Strike, RH or LHR, Dark Bronze Anodized

$63.89
$121.00
$57.11(47%)
13 In Stock.
ADR_490046201313
Adams Rite
Adams Rite 4900-46-201-313 Mortise Lock

Comes with both radiused and flat faceplates. 5/8in solid brass latchbolt is fully reversible. Armor front with adjustable bevel. One piece cast latch holdback. E-Z Glide rollers on main and auxiliary latch.

  • Bolt Holdback:
  • While bolt is held fully retracted, a reverse turn of the key retains the bolt, allowing the door to be free swinging.
  • Cylinder Backset:
  • 31/32", 1-1/8", or 1-1/2"
  • Case:
  • Measures 7/8" x 5-13/16" x depth. Depth varies by backset. Steel with corrosion-resistant plating. Screw-fastened tube spacer brackets allow for cleaner removal when tab mounting.
  • Latchbolt:
  • 5/8" x 1" x 5/8" throw. Solid brass. Handing is easily reversible using only a screwdriver.
  • Auxiliary Latchpin:
  • Stainless steel. Deadlocks latch bolt to prevent “loiding” or case-knife entry.
  • Faceplates:
  • Measures 1" x 6-7/8". Both flat and radius faceplates are supplied. Flat faceplates can also be adjusted in the field for right or left beveled edge doors.
  • Strikes:
  • Standard strike furnished is 4902 for flat jamb where door closes flush or nearly flush. Specify 4901 for retrofit installations. Also available: radius strike for opposite stile in paired doors and long lip strikes for centerhung doors.
  • Cylinder Cam:
  • 4900 Heavy Duty Deadlatches are operable by any standard 1-5/32" diameter mortise cylinder with MS® cam
  • Standard Package:
  • Individually boxed with flat and radius faceplates, strike, and machine screws for mounting. Order cylinders, paddles, handles, or lever operators separately. Shipping weight: 1-1/4 lbs.

Attributes

Alternate Codes: 100866, 4711-46313, 471146313, 4900-46-201-313, 4900-46313, 490046201313, 490046313, ADR4510-45313, ADR4511-45-201-313, ADR4900-46313

Baa Qualified: Yes

Backset: 1-1/2"

Cylinder Included: Adams Rite

Cylinder Type: Standard Mortise Cylinder

Finish: 313

Finish Color: Dark Bronze

Finish Description: Dark Bronze Anodized Aluminum

Function: Deadlatch

Grade: Grade 1

Handing: Right Hand

Latch Bolt Throw: 5/8"

Latch Bolt Type: Deadlatch

Limited Warranty: 5 Years

Lock Category: Mortise Lock

Series: 4900 Series

Strike Included: Yes

Strike Size: 4-1/8" x 1-1/8"

Subtype: Mortise Lock

Type: GLASS ALUMINUM HARDWARE
